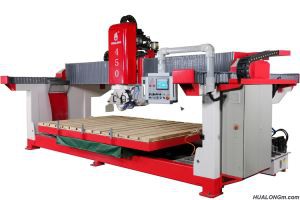

Economical mono-block bridge type cutting machine HLYT-700, produced by Hualong Machinery, is suitable for cutting different kinds of stone slabs into any shapes you want. Such as granite, marble, quartz or other natural or artificial stone slabs. It’s a good choice for you if you’d like to buy a stone cutting machine with stable and high performance.
Main Features
(1) Easy to operate, good stability and low maintenance cost.
(2) Left-right feeding is controlled by inverter and the speed is adjusted according to stone material.
(3) Blade tilt 45° for chamfering
(4) Worktable can rotate 0-360°and locate in every 45 degree and lock at any degree.
TECHNICAL DATA FOR HKNC-650X | ||
Diameter of saw blade | ø400-ø700 | mm |
Dimension of working platform | 3300x2000 | mm |
Max. cutting length | 3300 | mm |
Max. cutting thickness | 180 | mm |
Max. lifting stroke of cutter | 500 | mm |
Blade tilting | 45 | ° |
Worktable rotation | 0-360 | ° |
Power of main motor | 18.5 | kw |
Power of tool slide reciprocating motor | 1.5 | kw |
Power of crossbeam shifting motor | 1.5 | kw |
Power of hydraulic station motor | 3.5 | kw |
Gross power | 24.5 | kw |
Water consumption | 2 | m3/h |
Gross weight | 6000 | kg |
Dimensions (L x W x H) | 600x500x360 | cm |
Details Images
(1) Control system -- PLC
Brand: Panosonic
Original: Japan
PLC control and intuitive interface make operation easy.
Delta touch screen for data setting is friendly for automatic processing.
Both manual and automatic operations are available.
(2) Guide Rail & Rack
Oil-immersed V-shape tracks and racks on crossbeam and side beam ensure precise guide movement and long service life.
(3) Electric & Control Components
Such as Panosonic PLC, Mitsubishi converter, Delta touch screen, etc are designed with international standard brands for good quality and easy maintenance.
Factory Workshop
FAQ
Q1: How fast is the processing speed?
A1: Speed depends on customers’ materials and cutting requirement, and operator can adjust speed parameters accordingly.
Q2: Do you sell only standard machines?
A2: Besides standard machines, we can also customize.
Q3: Do you provide after-sales service?
A3: Yes, we provide online technical support within 24 hours in all working days. Training, maintaining, engineer oversea service all are provided.
Q4: How much will the Shipping cost be?
A4: It’s depended on the machine quantity you ordered and the destination port of yours’. Please offer us information of the items you want to order and your destination, we will be glad to check, calculate and let you know.
