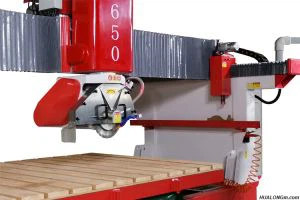

Full Automatic Marble Bridge Cutting Machine HLSQ-650, produced by Fujian Hualong Machinery Co., Ltd.We're mainly engaged in the producing and marketing of the product:
Feature
(1) The machine can be 0°/45° head tilted, 0°/90°/180°/270°/360° head rotation.
(2) This machine adopts Siemens control system. Siemens, Schneider Electric, Taiwan Hiwin rail and other international brands of high-quality accessories. Professional design, exquisite manufacturing.
(3) The worktable can be tilted from 0 ° to 85 ° to facilitate feeding, automatic rotation at every degree and 0° to 360° table rotation and stop at any degree manually.
Technical Data | ||
Name | Unit | HLSQ-650 |
Diameter of saw blade | mm | Φ400 - Φ650 |
Dimensions of working platform | mm | 3300x2000 |
Max. cutting thickness | mm | 200 |
Max. lifting stroke | mm | 300 |
Power of main motor | kw | 15 |
Power of lifiting motor | kw | 1.5 |
Power of main motor | kw | 15 |
Gross power | kw | 21.3 |
Water consumption | m3/h | 2 |
Dimensions (LxWxH) | mm | 5750x3600x3400 |
Gross weight | kg | 5800 |
Function
(1) Slab cut to square size, batch processing
a. Set processing parameters and determine the processing origin.
b. Turn the manual/automatic knob to automatic. Start the full-automatic vertical and horizontal cutting.
(2) Variable square size or other polygonal cut to size processing
(3) Automatic rotation at every degree and 0° to 360° table rotation and stop at any degree manually.
(4) Profiling Cutting (Optional)

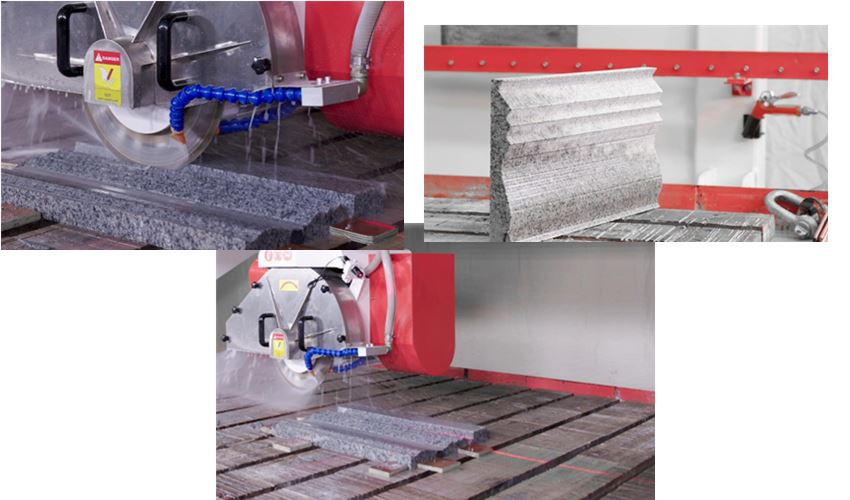

Application
