Name: Multi Wire Saw Machines
Brand: HUALONG
SKU: 248724863

Ultra Thin Multi Wire Saw Machine

HLMW-100/150 Super Thin Multi Wire Saw, an amazing new machine developed by HUALONG Machinery defining the next generation stone block cutting technology, with 0.3-0.8mm thin diamond wire brings yield rate more than 97%. It's the next machine of yours to cut block to slabs for much more benefits as follows:

Ultra Thin Multi Wire Saw Machine:

High yield - Tiny wire saws with only 0.4-0.7mm cuting grooves enable a yield of over 97%, 15-20% higher than conventional ones.
Emission Reduction of Stone Powder: over 90%
Noise reduction - No vibration, reduce noise over 40 dB.
Ultra thin slabs below 10mm can be produced
High precision prevent wire marks and improves the slab flatness by 50%.
Power saving - reduce 50% electric power consumption because of much less cutting friction.
Space saving - reduce equipment footprint by more than 30%.

Is the diamond wire of your machine easy to break?

No, not at all. It's the trouble of old generation machines.Because of our upgraded patented machnical structure and unique winding technology, the diamond wire will never break caused by stone.

For the stone with Moh's hardness not more than 7, the diamond wire can cut the stone smoothly, running stablely and not break.

For the stone with Moh's hardness more than 7, it's too hard for the diamond wire to bite for the time being. The diamond abrasive on the wire will be weared quickly, but the wire will still not be broken.

If the diamond wire was broken by other external force accidental, depend on the breakpoint location, it can be solved and have the cutting going on in 0.5-5 hours.

Basically, the diamond wire doesn't break, if wires happen to break because of the different quartz compositions contained in natural stone, Using Hualong's unique technology,it's still easy to repair and connect again.without affecting the cutting efficiency.

The output is 15% more than gangsaw and 20% more than traditional wire/rope saw.

Because diameter difference means yield difference.

HLMW-100/150's diamond wire saw diameter is 0.55mm.

Traditional diamond multi-wire saw machine is 5.3MM.

Gangsaw belt saw with segments, the thickness is 3.5mm

Marble cutting more flat as the diamond wire used diameter is 0.55mm only, it reduce the polishing machine's abrasive consumption. Flatness is controlled within +/-0.3mm

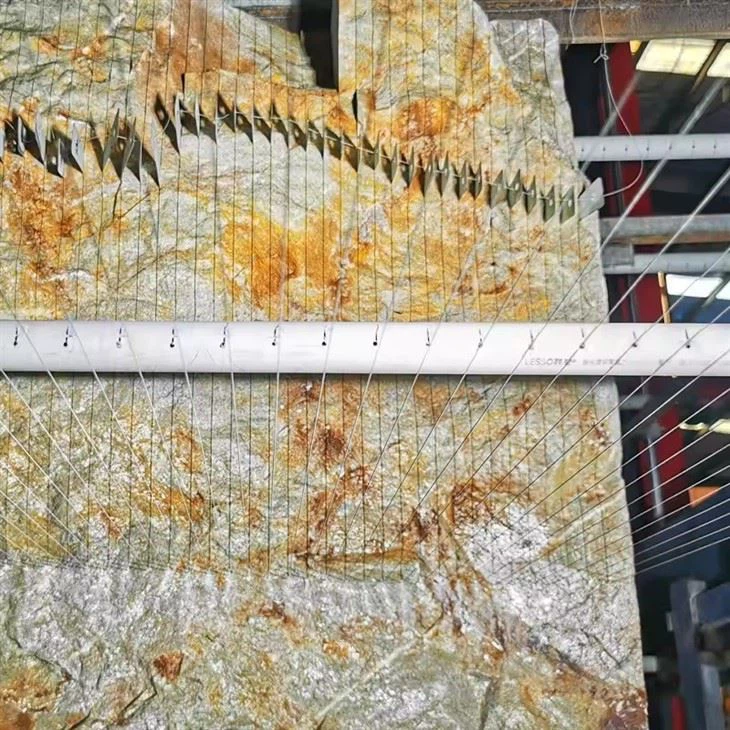

Solve marbles' with cracks cutting broken problem buy gangsaw or traditonal multi wire saw machine as super thin wire saw's wire is Φ0.55m only, as thiner wire used, as lower the friction which can avoid the cutting broken like picture below:
