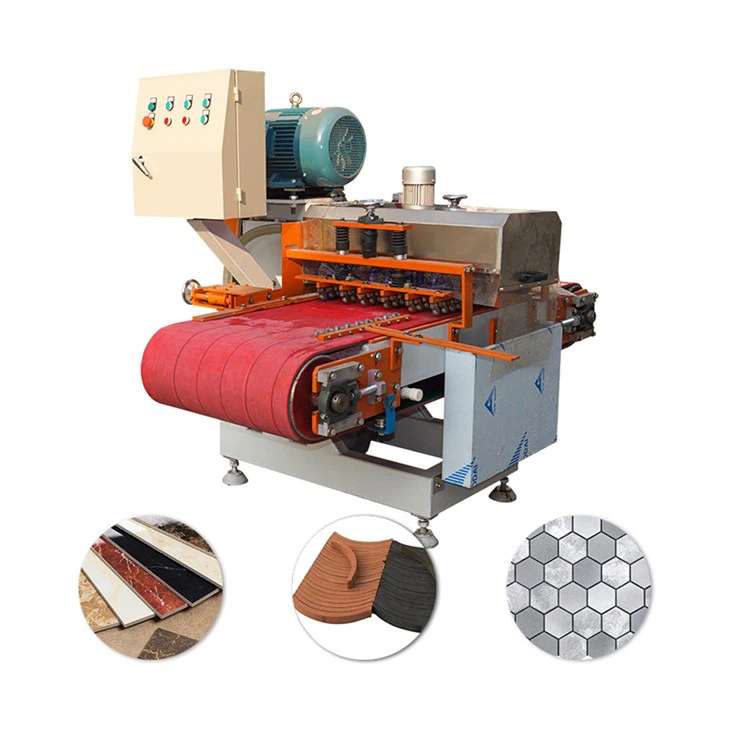

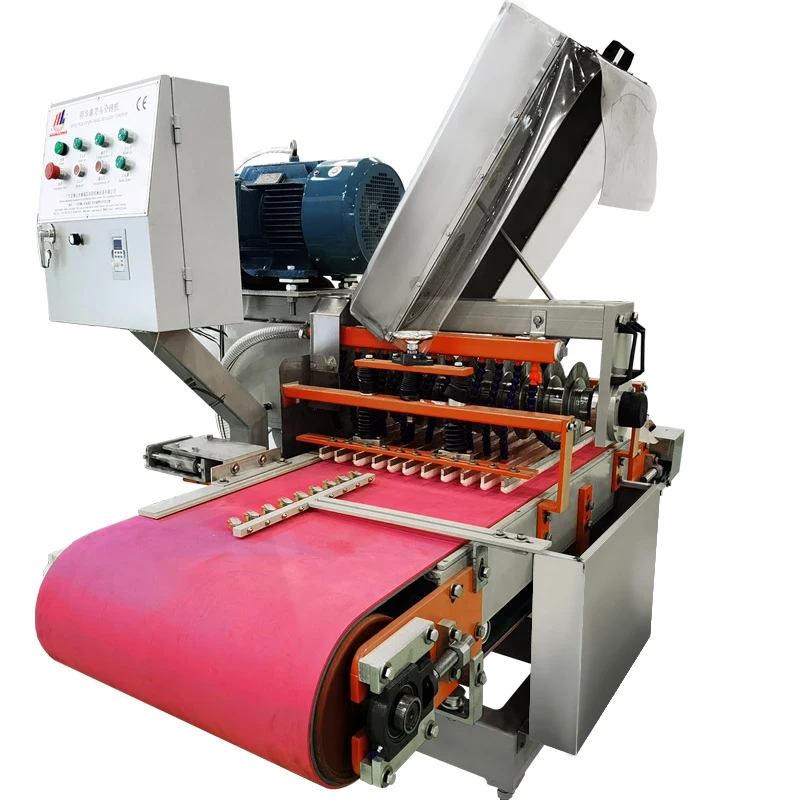

Automatic Continuous Tile Cutter

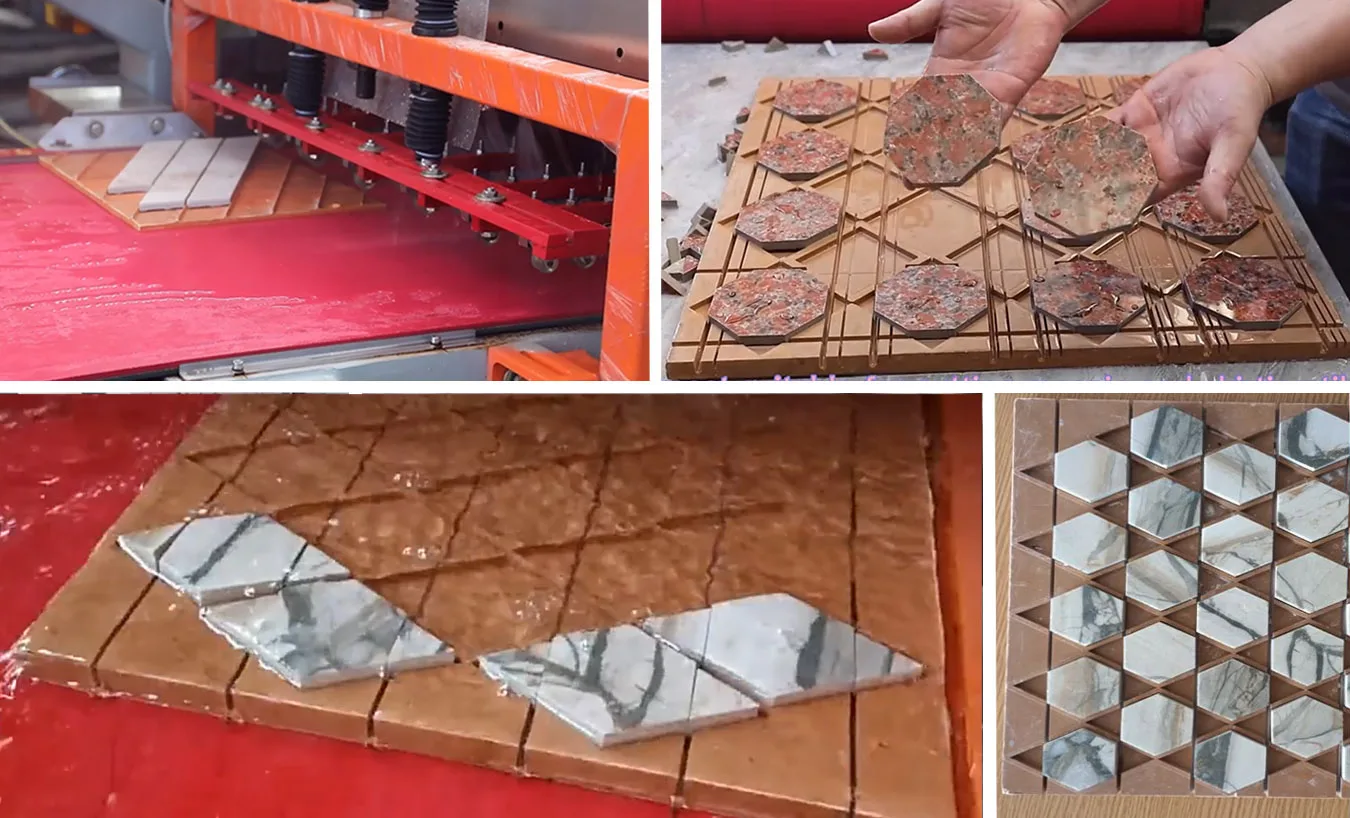

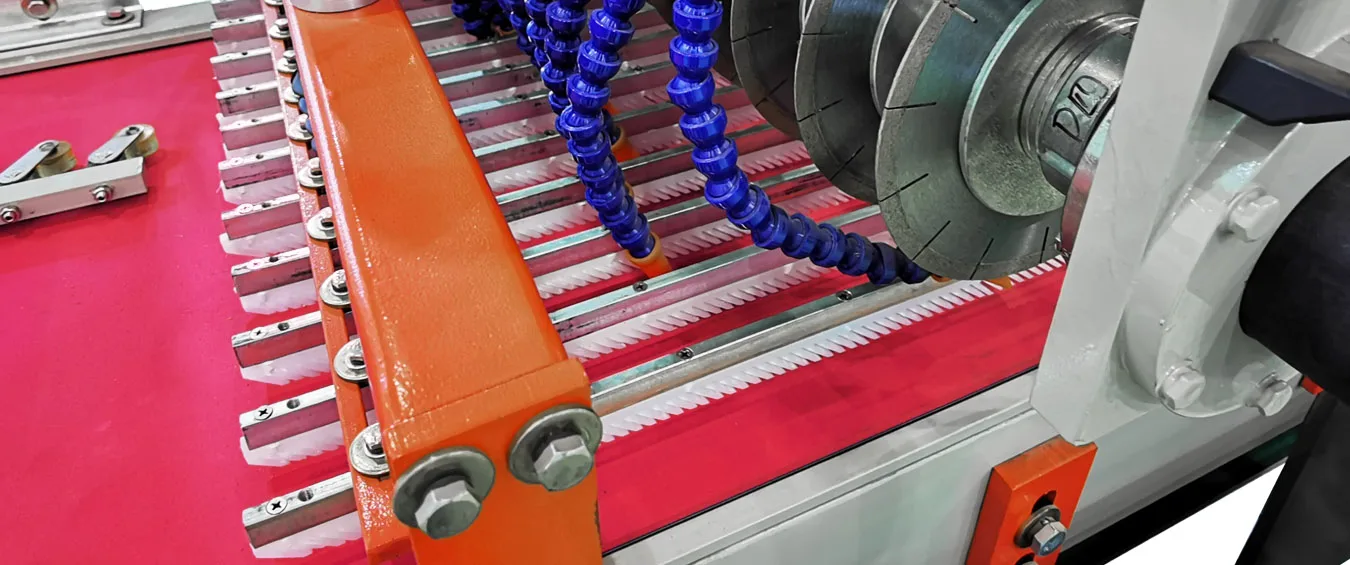

HLTC-600 /800 Tile Cutting Machine is a multi-blade cutter used for cutting or slotting tile and stone for 10-12 pieces at most at one time. It can cut tile into strip or square, diamond mosaic with special pressing plate. Different width can be processed simulaneously with chipping free cutting edges, and also chamfering function.
It is high cutting precision, high efficiency and has a excellent effect.

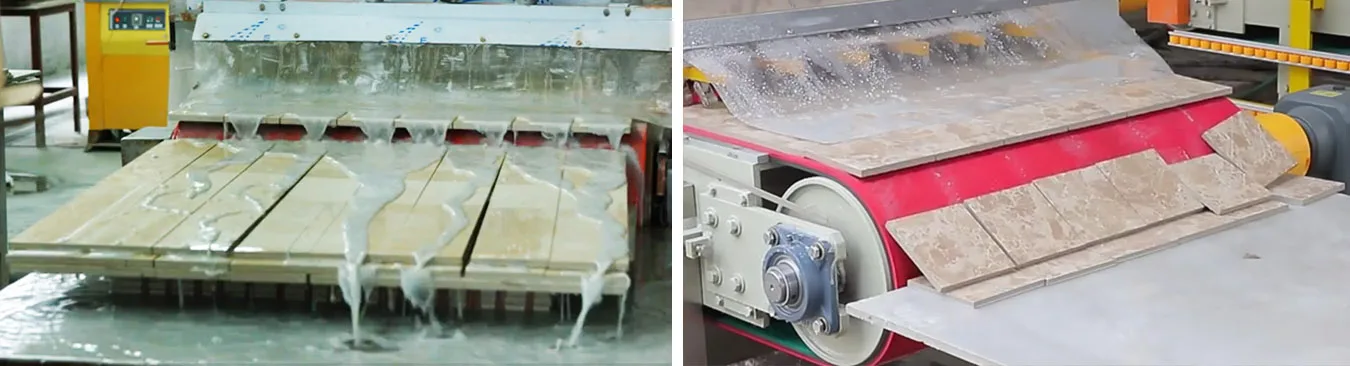

* Continous cutting

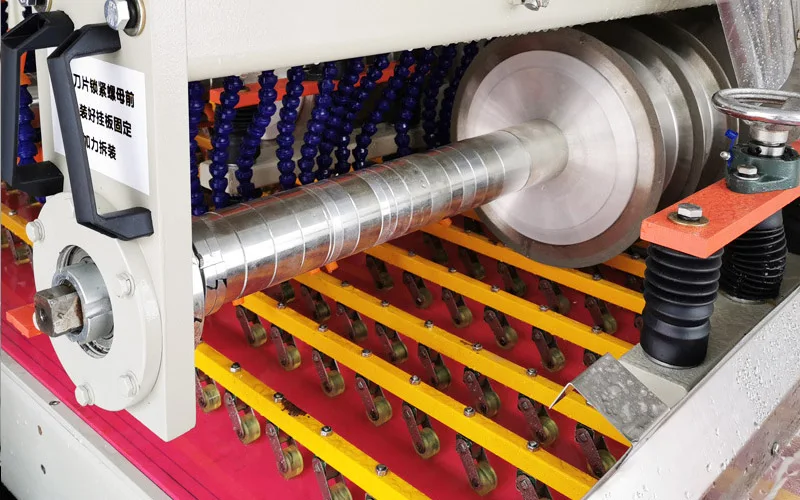

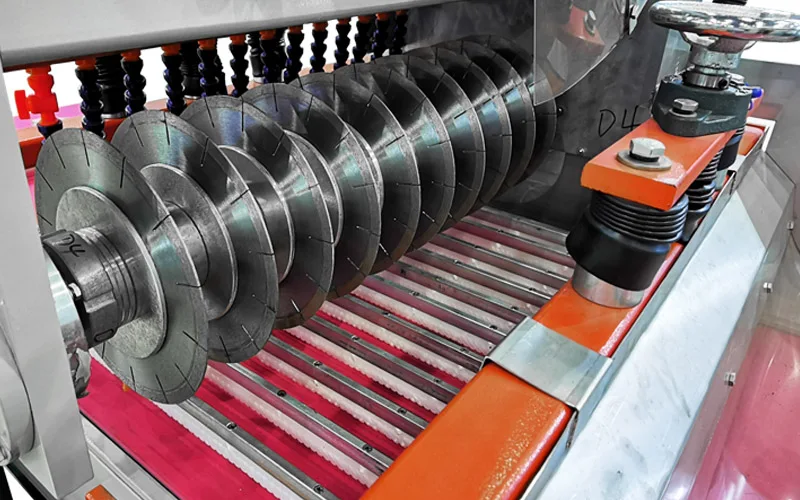

* Cutting with multi blades, cut into multiple pieces at one time.
* Equipped with automatic pressing plate, can process 10*10 mosaics.
* Maximum working width 600 / 800mm, cutting width adjustment from 20mm to 600 / 800mm.
|
Technical Data
|
|||
|
Model No.
|
HLCT-600S
|
HLCT-800S
|
|
|
Quantity of shaft
|
pc
|
1
|
1
|
|
Diamond of blade
|
mm
|
180-250
|
180-250
|
|
Processable thickness
|
mm
|
6 - 20
|
6 - 20
|
|
Processing width
|
mm
|
30-600
|
30-800
|
|
Speed of conveyor belt
|
m/min
|
1 - 5
|
1 - 5
|
|
Gross power
|
kw
|
16.5
|
16.5
|
|
Gross weight
|
kg
|
1000
|
1100
|
|
Dimensions ( L x W x H )
|
mm
|
2200x1500x1800
|
2200x1600x1800
|
2) With chamfered edge effect after cutting. Can cut or slot mosaic sizes at one time
|

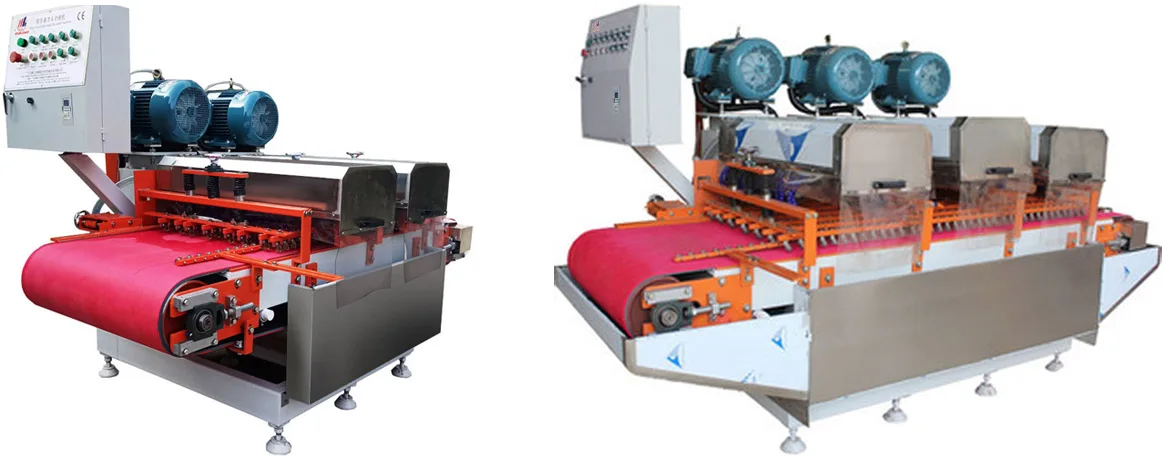

Technical Data
|
|||||
|
Model No.
|
HLCT-600D
|
HLCT-800D
|
HLCT-600T
|
HLCT-800T
|
|
|
Quantity of shaft
|
pc
|
2
|
2
|
3
|
3
|
|
Blade diameter
|
mm
|
180 - 250
|
180 - 250
|
180 - 250
|
180 - 250
|
|
Processable width
|
mm
|
30 - 600
|
30 - 800
|
30 - 600
|
30 - 800
|
|
Conveying speed
|
m/min
|
1 - 5
|
1 - 5
|
1 - 5
|
1 - 5
|
|
Gross power
|
kg
|
25
|
25
|
26
|
26
|
|
Gross weight
|
kg
|
1300
|
1500
|
2000
|
2200
|
|
Dimensions ( L x W x H )
|
cm
|
250x170x180
|
250x180x180
|
320x170x180
|
320x180x180
|
