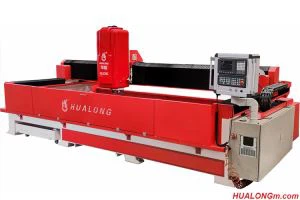

HKNC-825, a fully automatic 5 axis cnc stone machine with verstile capability of cutting, drilling, milling and carving, is ideal for machining slabs and blocks of granite, marble, quartz and other natural stone or artificial stone. With user-friendly touch screen and Italian ESA cnc control system, it allows easy programming, operation and can implement different complex curved surface machining.
In addition, this machine has a beefed up mono block frame and more powerful motion controls. This design allows for a small foot print, increased machine rigidity and MORE power where you need it.
It will be backbone of your shop.
Other features
• Automatic head rotation: 360º
• Blade tilting: 0-90º
• Hydraulic 0-85º tilting table
• Hollow spindle with centre water feed
• All movements are driven by servo brushless motors
• Linear guide with recirculating balls on x,y and z axis
• The axis lubrication is carried out automatically
• Digital camera to photograph the slab
• Accepts DXF files
• Parametric figures software
• Cut squares, ovals, round, arc, mitered borders (both at 90° and 45°) & complex profiling cuts
Optional
• Blade and milling cutter detection
• Safety door infrared induction
• Hand wheel
Specifications
• Blade ø400 – 800mm
• X axis travel: 3500mm
• Y axis travel: 2100 mm
• Z axis travel: 650 mm
• Max.cutting thickness: 290mm
• Power of main motor: 22 kw
• Gross power: 27.3 kw
• RPM 1400/2400
• Water use: 2 m3/h
• Power required: 3 phase, 220V, 60 amp
• Table size: 138" x 82.5"
• Dimensions: L268" x W133" x H153"
• Weight: 6500 kgs
Application
Ideal for building suppliers (interior and exterior floor and wall tiles, stairs, cornices, etc.), interior decorators and furnishing manufacturers (kitchen and bathroom worktops, washbasins, sinks, tables, etc.)
Our Service
Hualong has professional technical team, service team to provide on-stop service from consulting, design, planning, manufacturing, installation.
*Interacting with customer and analyzing project.
*Design process from customer side.
*Short delivery time
*Installation debugging and training on site.
*Spare parts always available.
*All working days stand by.
Packaging & Shipment
Packaging with plastic film /bubble outside for main machine parts, with wooden box or carton for accessories and tools. All well fixed in container.
FAQ
Q: Are you a manufacturer or trading company?
A: We are manufacturer, one of the leading stone machinery manufacturer in China. And we can provide one-stop shopping service.
Q: How about customization?
A: ODM/OEM business partner will be warmly welcome.
Q: What about the leading time?
A: In general, the leading time is about 25 to 35 days. But please confirm the exact delivery time
with us as different products and different quantity will have different leading time.
Q: Have you been exported to our country?
A: We have been to
Q: If we need technical support, can you offer us?
A: Yes, we have an experienced team to offer technical support. Well-trained salespersons and engineers are always ready to respond to your techincal doubts.
Q: How do I install and operate the machine, after receiving it?
A: For simple machine, we will provide sufficient installation, operation and maintenance instruction and videos, which will make the whole thing as simple as possible for users. For high-tech machine, our engineers can fly abroad to help you install & debug the machine, and teach you how to operate and maintain the machine properly in the future.
