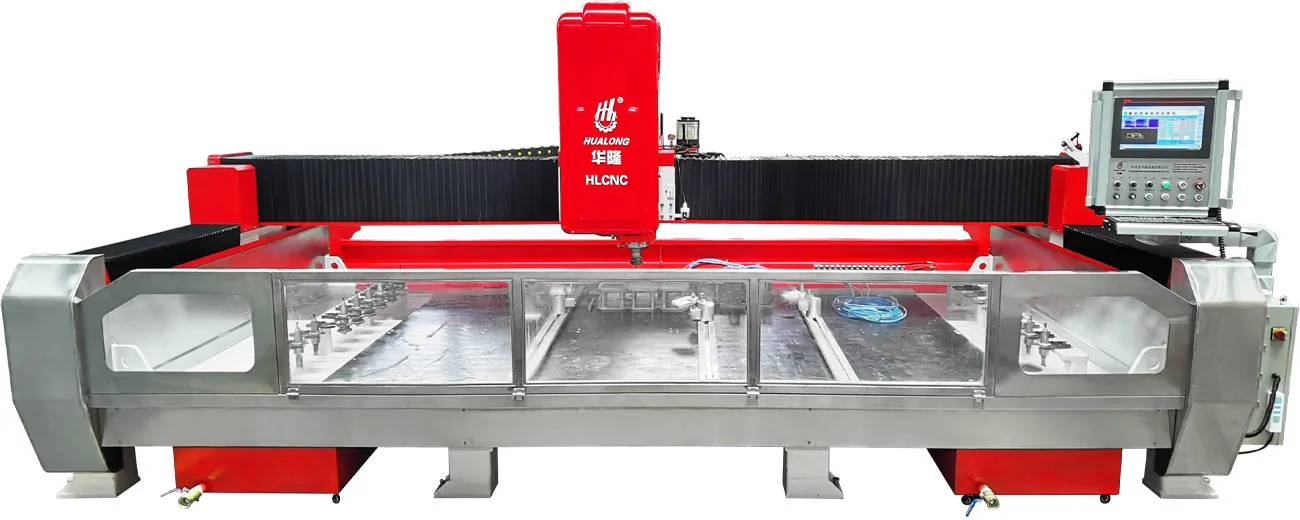

Hualong MATE cnc working center is an all-in-one machine, combining efficient sawing and accurate edging capabilities, ideal for kitchen countertops fabrication. It includes functionality of a 5 axis bridge saw, a 3 axis cnc router and edge polisher, among them:
* Italian ESA cnc system and Pegasus software,
* 3 axis + 5 axis interpolation,
* spindle with automatic tool change ISO40,
* able to reach a maximum of 9000 RPM,
* with trough-spindle lubrication,
* up to 22 tool change positions,
* vacuum manipulator system for parts movement during automatic cut process,
* on-board camera and projector.
It can perform each type of cutting, mitering, raw and polished contouring, as well as milling, drilling, counter sinking, bas relief, and writing.
This machine can be customized to the customer's needs, it is the winning solution for every fabshop.
|
TECHNICAL DATA
|
||
|
Stroke (X-axis)
|
mm
|
3500
|
|
Stroke (Y-axis)
|
mm
|
2000
|
|
Stroke (Z-axis)
|
mm
|
320
|
|
Power of spindle motor
|
kw
|
7.5
|
|
Rotating speed
|
rpm
|
0-8000
|
|
Tool holder model
|
BT
|
40
|
|
Tool- store position
|
nr
|
22
|
|
Workbench dimension
|
mm
|
3500x2000
|
|
Diameter of saw blade
|
mm
|
ø300-ø350
|
|
Max. cutting length
|
mm
|
3500
|
|
Max. cutting thickness
|
mm
|
50
|
|
Max. lifting stroke
|
mm
|
250
|
|
Max. lifting weight by sunction cups
|
kg
|
200
|
|
Power of main motor
|
kw
|
15
|
|
Power of cutter frame reciproctationg motor
|
kw
|
2
|
|
Power of crossbeam shifting motor
|
kw
|
1.1
|
|
Power of lifting motor
|
kw
|
0.75
|
|
Gross power
|
kw
|
29.7
|
|
Gross weight
|
kw
|
8500
|
|
Dimensions (L x W x H)
|
mm
|
8500x4400x4000
|
