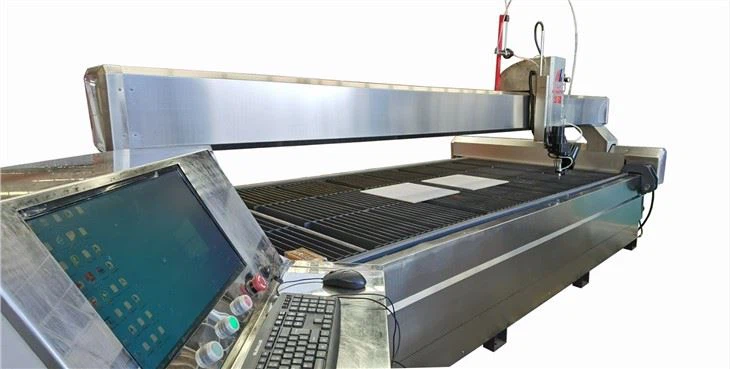

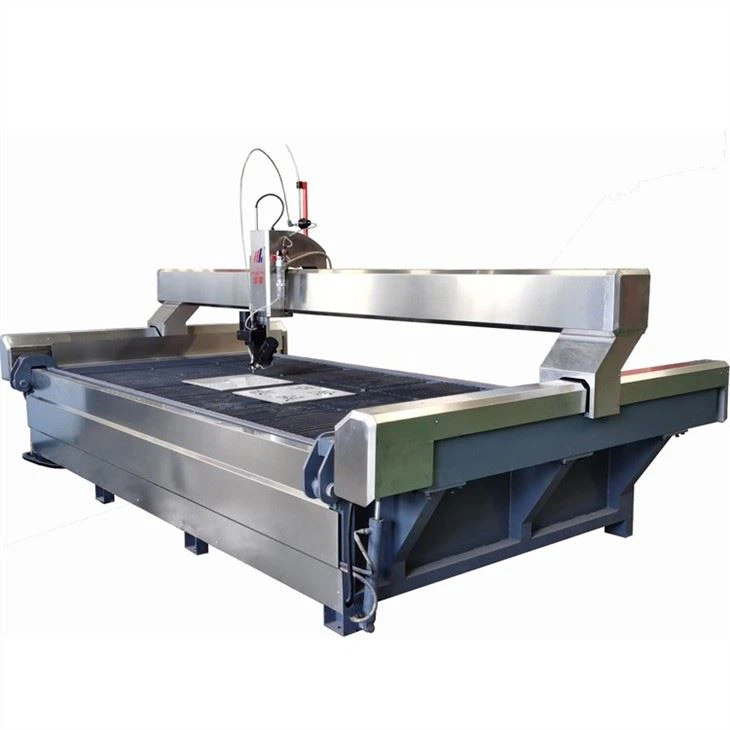

Hualong Machinery 5 Axis Waterjet Cutter adopts the gantry-style balanced design structure,which is more stable and improves the accuracy of the machine.The CNC control system uses China WEIHONG professional waterjet cutting CNC system. As one of the most versatile cutting machine, Hualong 5 Axis waterjet cutting machine is widely used for cutting metal, stone, glass and so on.
More Advantages of 5 Axis Waterjet Cutter

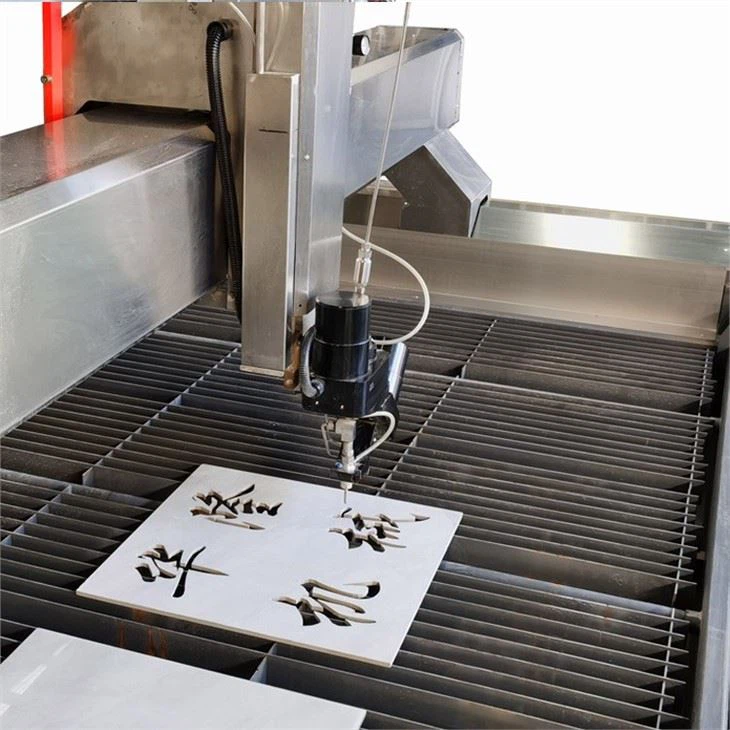

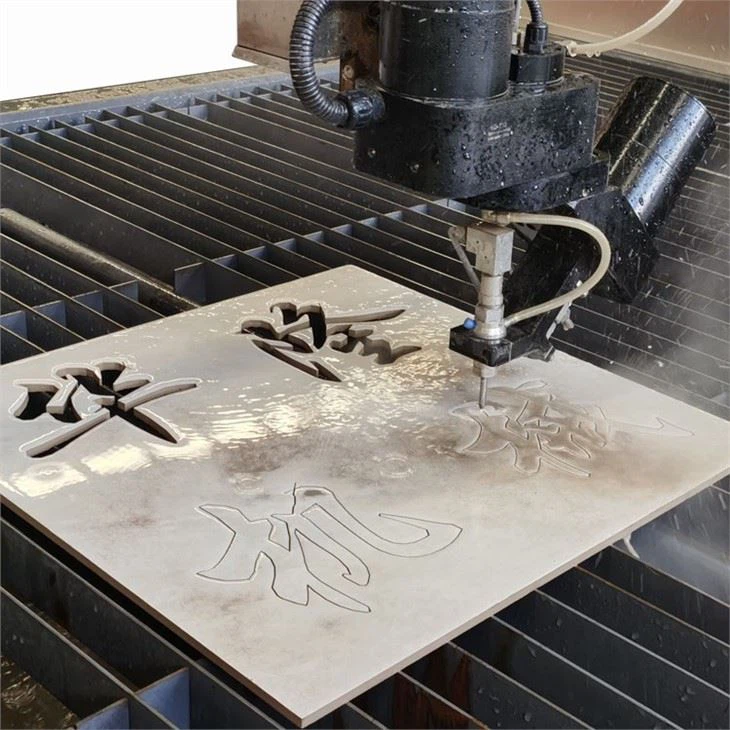

(1) Ultra-high pressure cutter head, which can be cut with pure water and sand. It 5-axis cutter heads for vertical and non-vertical cutting with a maximum cutting angle of 60 degrees.
(2) The X/Y axis adopts the labyrinth waterproof and sandproof double protection system. The X/Y axis adopts Taiwan's high-quality guide rail and ball screw. It is durable and the Z-axis fully enclosed structure is guaranteed to be free from water and sand.
(3) Heavy-duty machine tools, high-temperature forging, so that the machine will not be deformed during use.
(4) The internal components are selected from Schneider International brand, with first-class quality and reliable work.
(5) Way of drive : Servo ( drives and motors are from Japan YASKAWA ).
(6) High precision, Ensure cutting results.
| Technical Data for water jet cutting machine | |||
| Model No. | HLWJ-3020 | HLWJ-4020 | |
| Working area | mm | 3300*2100 | 4100*2100 |
| X-axis stroke | mm | 3200 | 4000 |
| Y-axis stroke | mm | 2000 | 2000 |
| Z-axis stroke | mm | 80-130 | 80-130 |
| Max. angle of C axis rotation | ° | +/- 360 | +/- 360 |
| Max. angle of A axis swing | ° | +/- 60 | +/- 60 |
| Cutting accuracy | mm | +/- 0.1 | +/- 0.1 |
| Repeatable accuracy | mm | +/- 0.05 | +/- 0.05 |
| Traverse speed | mm/min | 5000/15000 | 5000/15000 |
| Main motor power | kw | 37 | 37 |
| Dimension (L x W x H) | mm | 443x278x220 | 494x280x222 |
Component
There are four parts in our waterjet cutting machine.

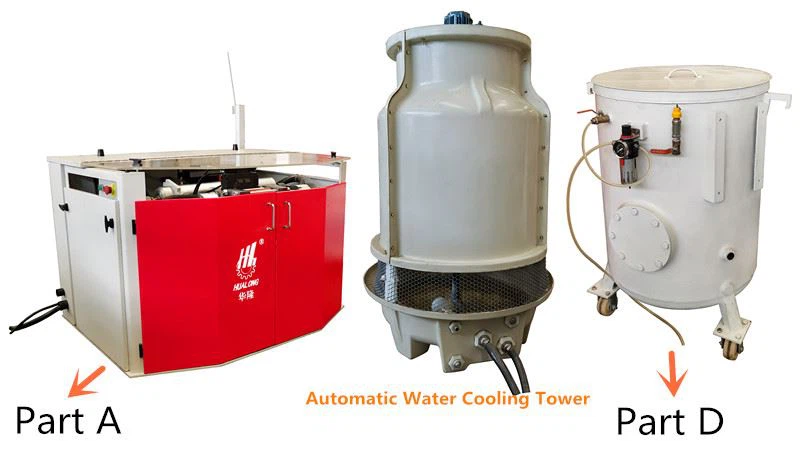

They are Intensifier Pump(Part A), Cutting table (Part B) ,CNC system(Part C) and Auto Abrasive Feeder (Part D)
Packing and Delivery
| Delivery Time | 30days |
| Payment Term | T/T, 30% in advance , 70% before shipment. |
| Packaging Details | Normal packaging is container. We can also according to the special requirements of customers for packaging |
| Port | Fuzhou |
| Validity | 45 days from the date we offered validity |
FAQ
Q: What is the advantage of water jet cutting machine?
A: Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.
Q: How to choose the cutting table?
A: You need to offer the size of the materials you want to process or the size of the cutting table.
Q: Is the equipment easy to operate?
A: Hualong intelligent 5 axis waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.
