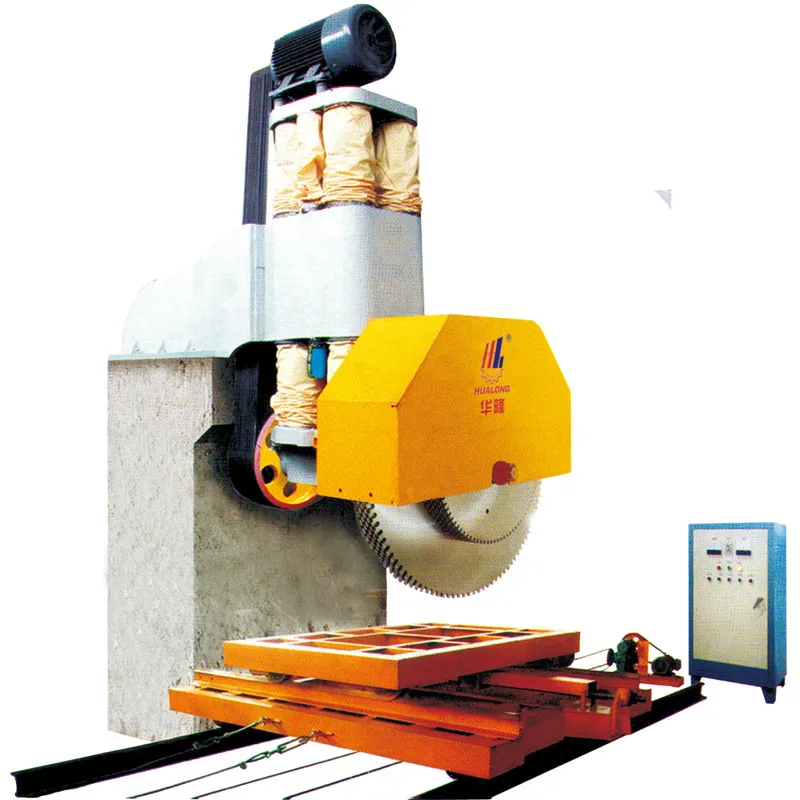

Hualong Machinery Hydraulic Lift Mulit-blade Stone Block Cutting Machine HLDQ-1600 is suitable for cutting stone blocks, such as granite, marble.It is matched with trolley and track,which is a good helper of stone factory.
This machine is optimized and improved on the basis of traditionalcombination saw. It's solid four-pillar(or six-pillar) structure, goodrigidity, small gap, not affected by hot expansion or cold contractioncaused by the exteral environment, which effectively reduce theshaking in the cutting process. The blade segments consumption issmall. The production efficiency is high. The slab flatness is good
Original four pillars, locking automatically at the same time, so thatthe machine,including mainframe, main motor, spindle box andaccessories make up in a complete rigid state during the cuttingprocess. The good stability effectively extend the service life.reducing energy consumption and increasing output.
Oil-immersed lubrication, have the oil full filled in the space betweenthe four guide pillars and the main frame, so that the guide pillarsguide sleeve be always lubricated, which greatly prolong the life ofthe equipment .This is a low investment and high capacity stoneblock cutting machine
Note: Machines with different cutting height and width can becustomaized according to customer's demand.
Main Features
1) Full sealed four-cylinder guider rail is used for rising and falling which makes the whole structure more stable, reducing wear and keeping themachine in the best working status for long time.
2) Electric automatic slice separating improves the precision of the products, reduce labour intensity and improves the efficiency.
| Thechincal Data | |||
| Model No. | HLDQ-1600/6 | HLDQ-1600/10 | HLDQ-1600/16 |

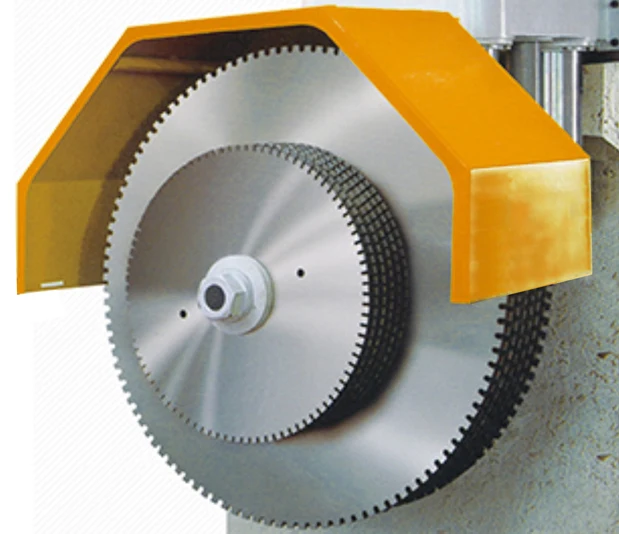

| Big blade diameter & qty. | 1600mm - 3pcs | 1600mm - 5pcs | 1600mm - 8pcs |
| Small blade diameter & qty. | 940mm - 3 pcs | 940mm - 5pcs | 940mm - 8pcs |
| Blade lifting stroke (mm) | 1000 | ||
| Max. cutting size (mm) | 3500x1300x950 | ||
| Power of stroke motor (kw) | 2.2 | ||
| Power of lifting motor (kw) | 2.2 | ||
| Power of main motor (kw) | 37 | 45 | 55 |
| Gross power (kw) | 41.4 | 49.4 | 59.4 |
| Water consumption (m3/min) | 37 | 42 | 42 |
| Gross weight (kg) | 6000 | 7800 | 8500 |
| Dimensions (L x W x H - mm) | 8500x4000x5500 | ||
Right elevation
Left elevation
Front elevation
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
Production Process:
-
Customer need to prepare foundation first with drawing provided by us.
-
Install machine and blades.
-

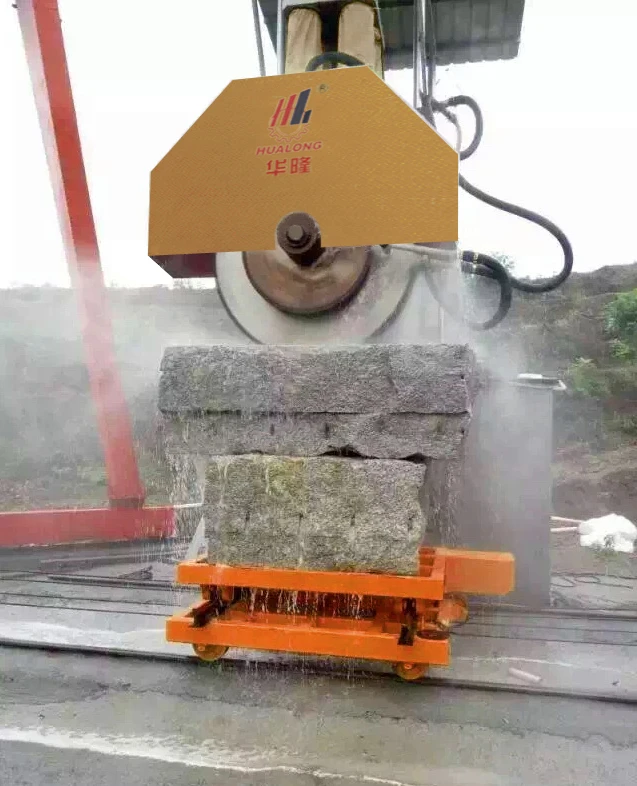

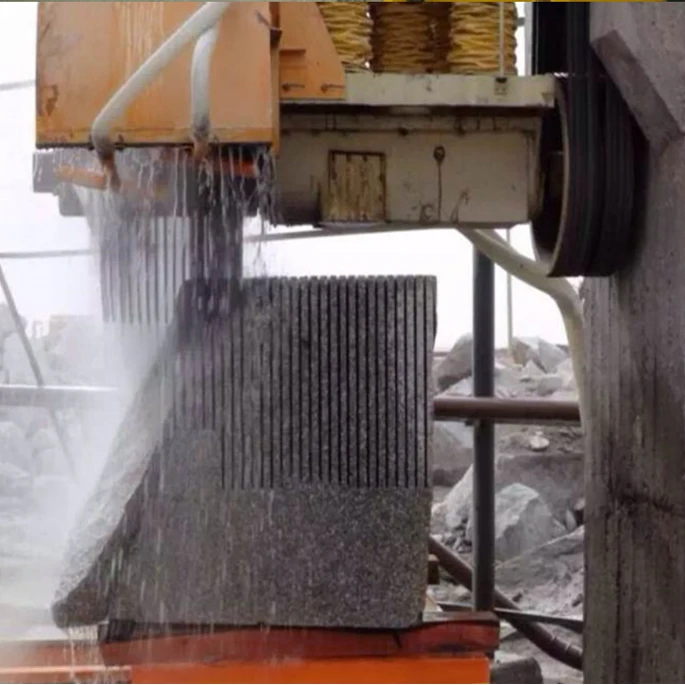

Machine cut.
-
Take down the slab from block one by one, we can make a mould to support the slab, machine can cut directly to the end and slab will not fall apart.
-
Trolley is included in the machine and customized according to customers requirement.

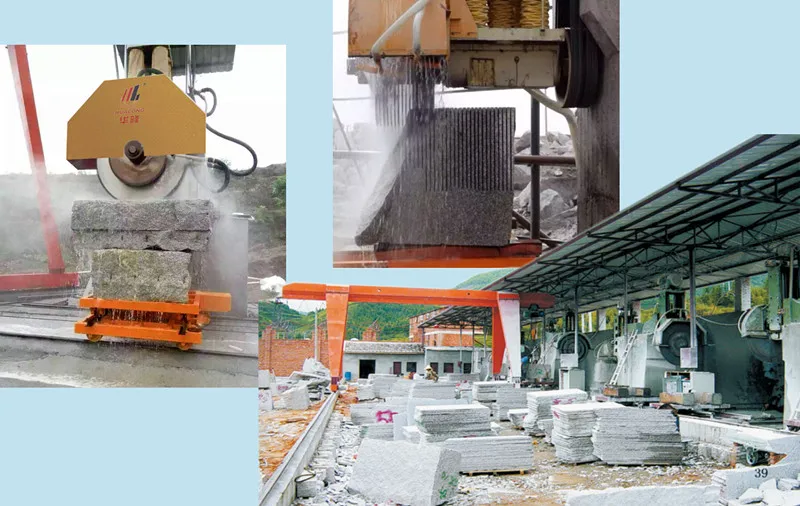

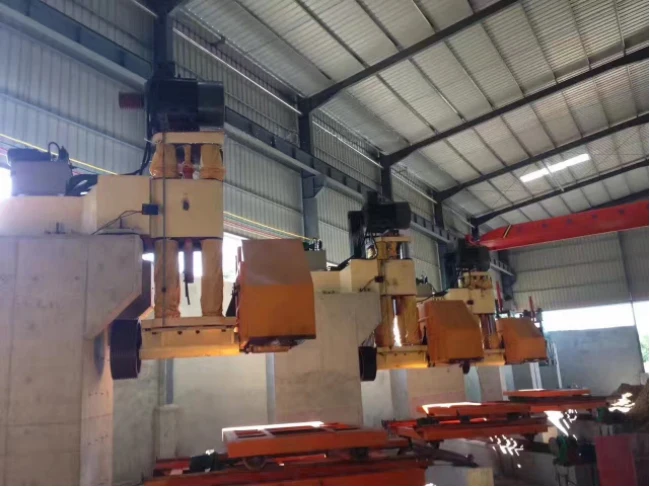

Customer's Spot
What machine is good for marble block cutting machine?
For cutting marble blocks, a diamond wire saw machine is considered one of the best options due to its ability to cut through hard and dense materials like marble with precision and efficiency. However, there are also other cutting machines that can be suitable for cutting marble blocks, depending on the specific requirements of your project. Here are some machines commonly used for marble block cutting:
Diamond Wire Saw Machine: Diamond wire saw machines are specially designed for cutting large marble blocks into slabs or specific shapes. They use a thin, diamond-coated wire that can cut through marble with high precision, minimal waste, and a smooth surface finish.
Bridge Saw: Bridge saws are versatile cutting machines commonly used in stone processing. They feature a diamond-tipped circular blade mounted on a bridge-like structure that moves across the marble block to make straight cuts. Bridge saws are ideal for cutting smaller marble blocks or for producing intricate shapes and cuts.
CNC Stone Cutting Machine: CNC stone cutting machines are automated cutting systems that use computer numerical control (CNC) technology to create precise and complex cuts on marble blocks. They offer high precision and repeatability, making them suitable for custom projects or large-scale production.
Wire Saw with Frame System: This type of wire saw machine features a frame structure that holds the marble block securely during cutting. It offers stability and control, allowing for accurate cutting of large and thick marble blocks.
Chain Saw Machine: Chain saw machines equipped with diamond-tipped teeth can also be used for cutting marble blocks. They are suitable for making straight and curved cuts in marble.
When selecting the best machine for cutting marble blocks, consider factors such as the size and thickness of the blocks, cutting precision, production volume, and budget. Additionally, ensure that the machine's specifications align with your specific cutting needs and that the manufacturer or supplier is reputable and provides good after-sales support.
Always follow safety guidelines when operating any cutting machine and use appropriate protective equipment to ensure the safety of operators and workers.
